Using a LOR iDMX adapter to drive Lynx equipment.
From Holiday Controller

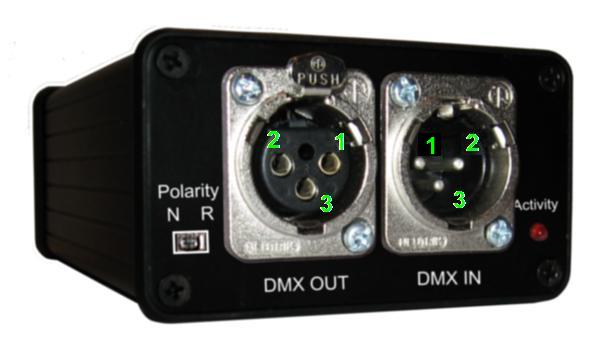

If you are using a Light-O-Rama iDMX adapter to drive Lynx equipment, your XLR to RJ-45 adapter should look like this.
The image is from Light-O-Rama.
The following are the pinouts, assuming TIA-568B for the RJ45 end.
- To connect to Lnyx Equipment
- XLR Pin 1 (GND) ----> N/C
- XLR Pin 2 (-ve) ----> RJ45 Pin 2 (Orange)
- XLR Pin 3 (+ve) ----> RJ45 Pin 1 (White/Orange)
- To connect to Light-O-Rama Equipment
- XLR Pin 1 (GND) ----> N/C ?
- XLR Pin 2 (-ve) ----> RJ45 Pin 5 (White/Blue)
- XLR Pin 3 (+ve) ----> RJ45 Pin 4 (Blue)
Do not use the DMX IN connector. This is used for connecting to an existing DMX network and is terminated independately from the DMX out connector network.
