Pin out for ICSP28 adapter

ICSP28 Adapter

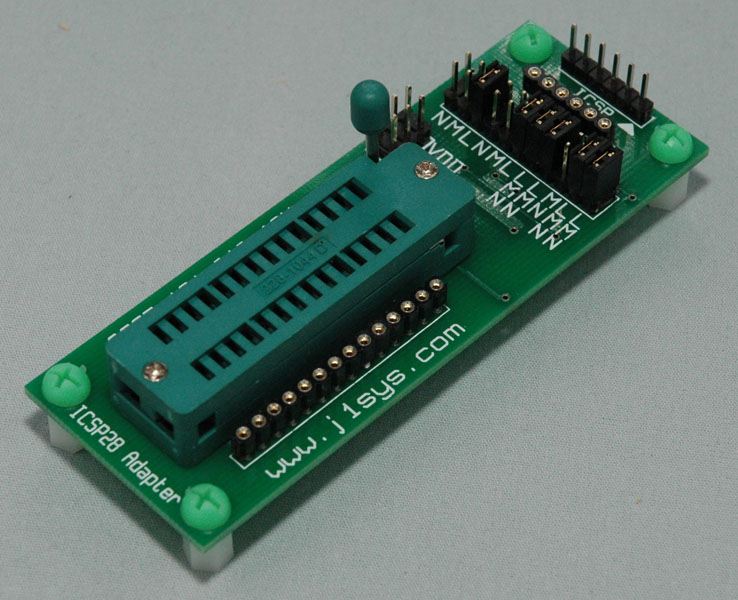

This page illustrates the jumper settings used on the DMX Dongle while programming. Notice the jumper settings all L's are jumpered.

Note, this is NOT for the PIC24's used on the Lynx Express and Wireless modules.
