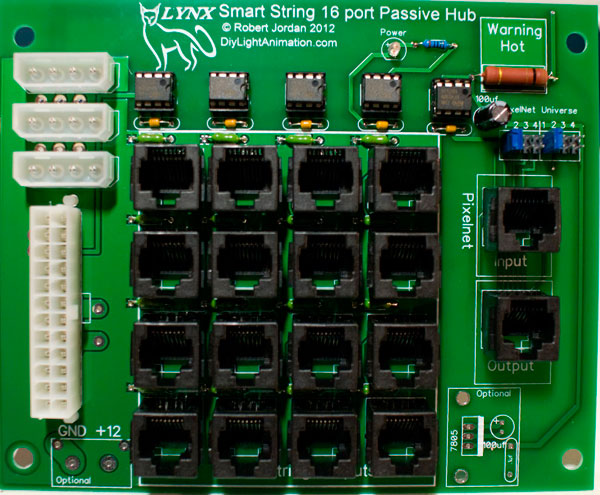

PixelNet 16 Port Passive Hub

Description: Power/Data Outputs for SSCs with outputs for Pixelnet
Jumper selectable four pixelnet universes
Requires pc power supply to power the board and the SSC or optional 12v dc input
Connectors (18): 16 Smart String Outputs with 12V DC power, 1 Pixelnet Output (no power), 1 Pixelnet Input
Data Type: Receive Pixelnet
Common Use: Pixelnet splitter



Thumb
